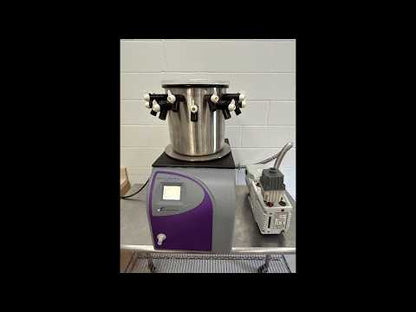

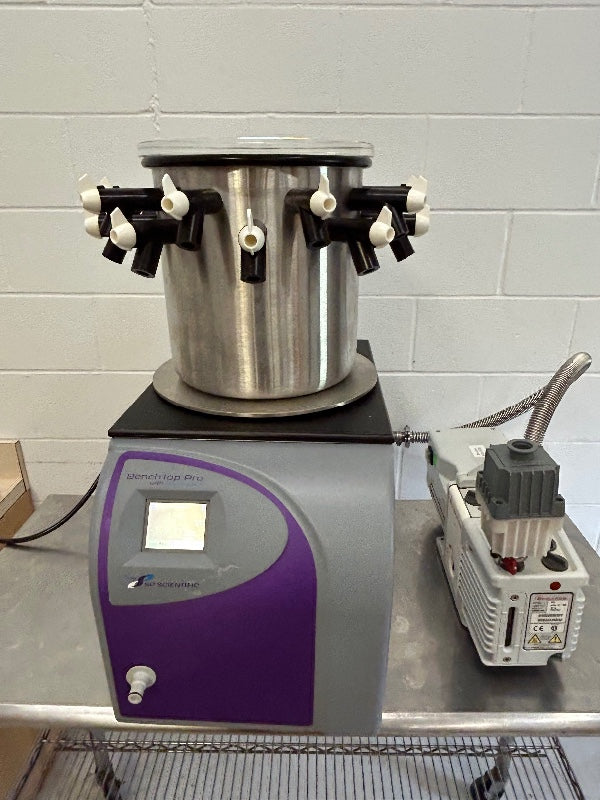

SP Scientific Benchtop Pro Freeze Dryer System -105°C DOM2018 See Video

Technical Notes:

Cold Well Performance：

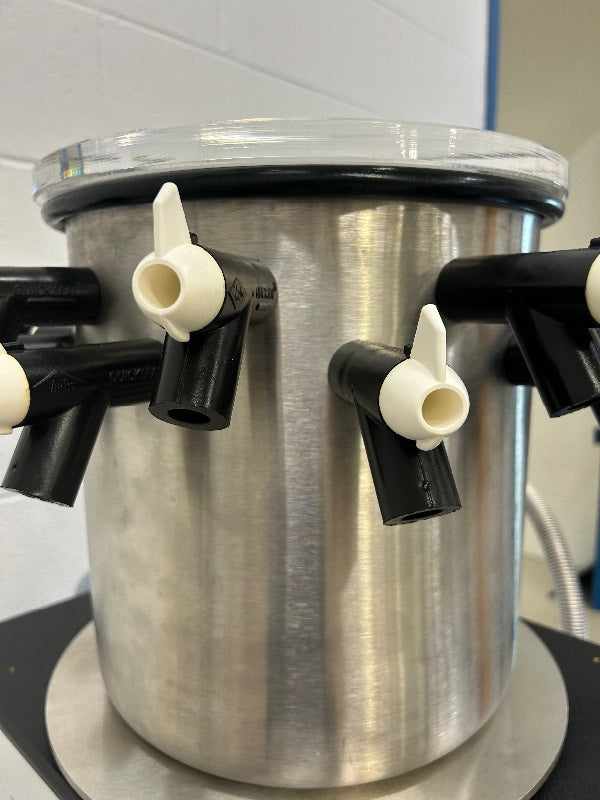

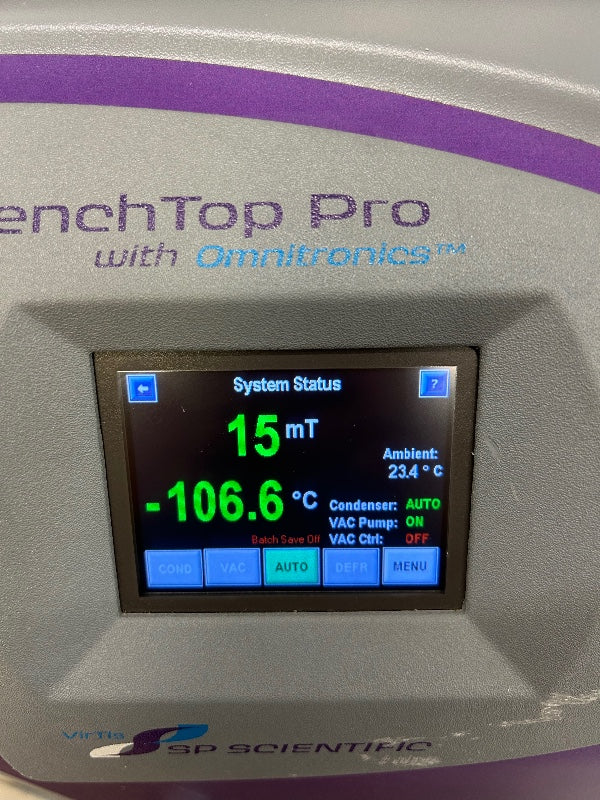

Designed cold well temperature: -105°C. During a no-load test (drum manifold empty, all Quickseal valves closed), the unit cooled rapidly and reached -106°C, meeting the manufacturer's design specification.

Vacuum System：

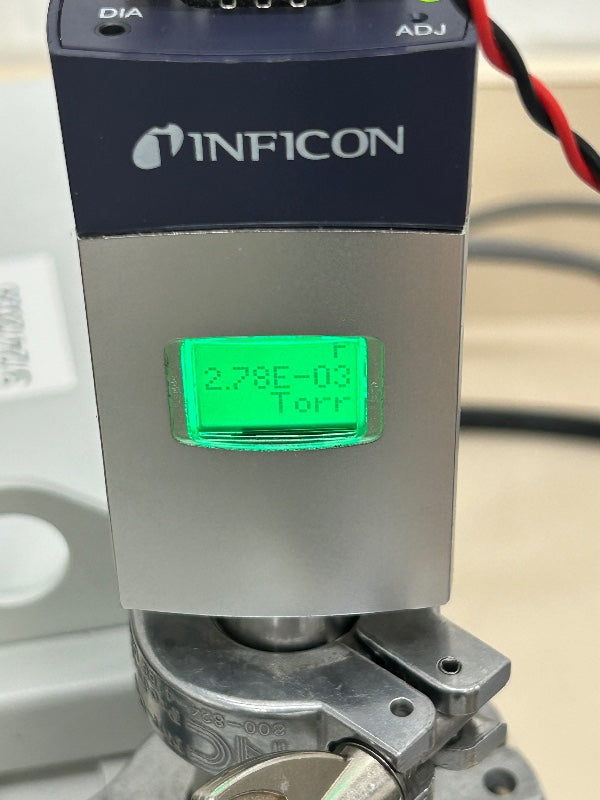

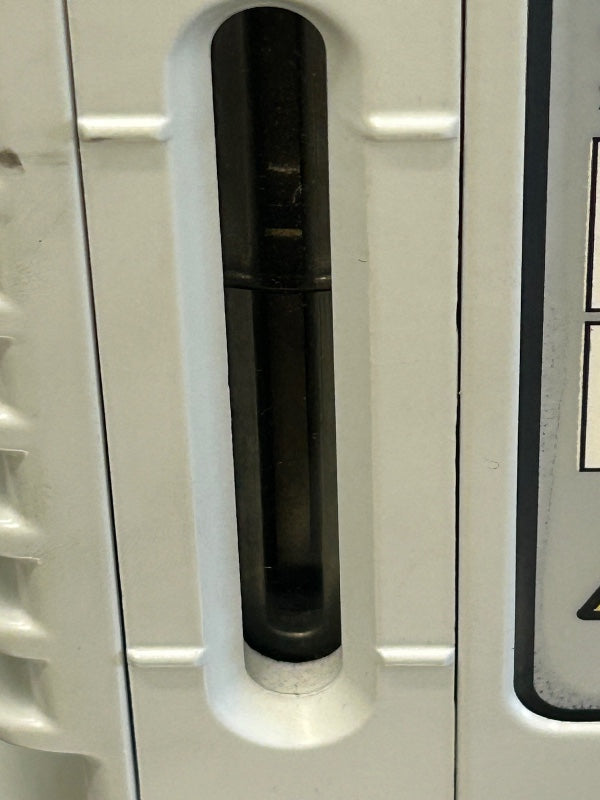

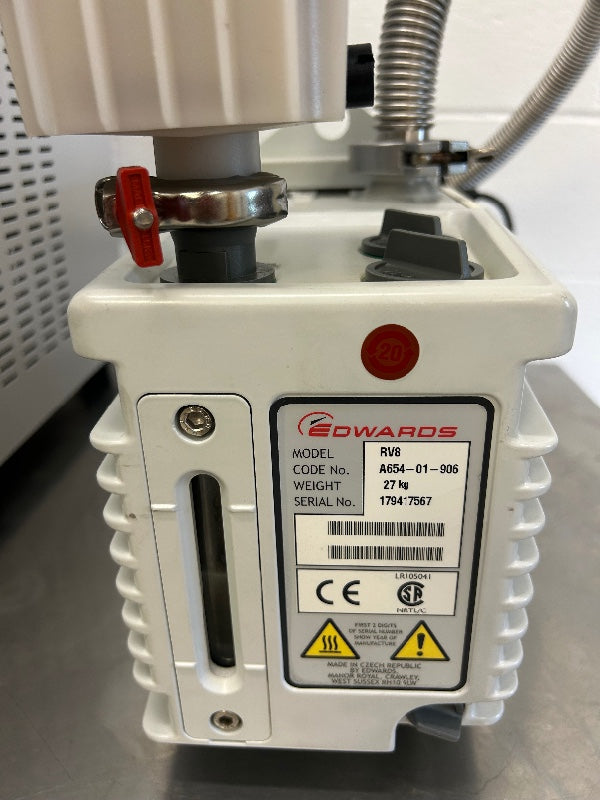

The unit was tested with an Edwards RV8 vacuum pump (OEM pump not included). Ultimate pressure measured ~3 microns (3 mTorr), with pump oil observed clear — indicating a healthy, well-maintained pump.

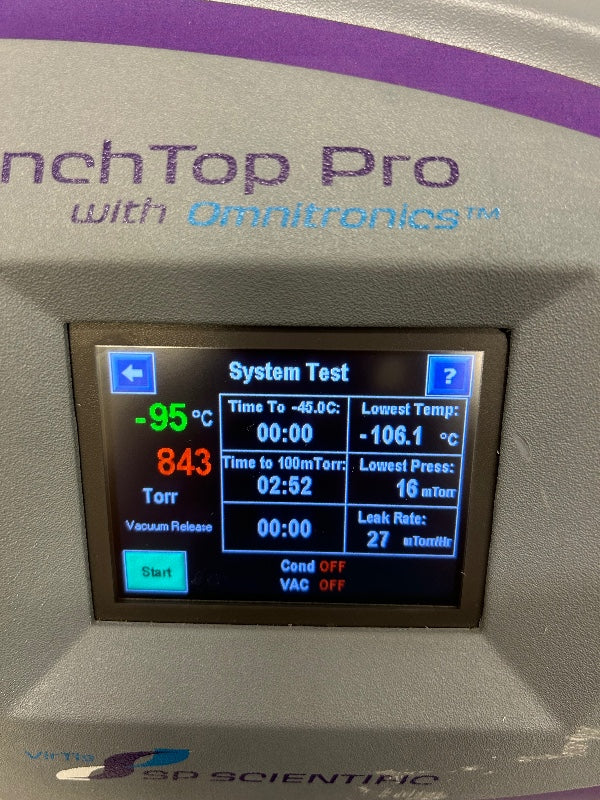

During the no-load system test, vacuum reached 16 mTorr. Time-to-100-mTorr was approximately 3 minutes (measured immediately following a completed cycle). With the pump isolated, system pressure rose from 16 mTorr to 43 mTorr over one hour, demonstrating good chamber and seal integrity. When auto mode is disabled, the gas release valve opens automatically to safely vent the system.

Seals & Gaskets：

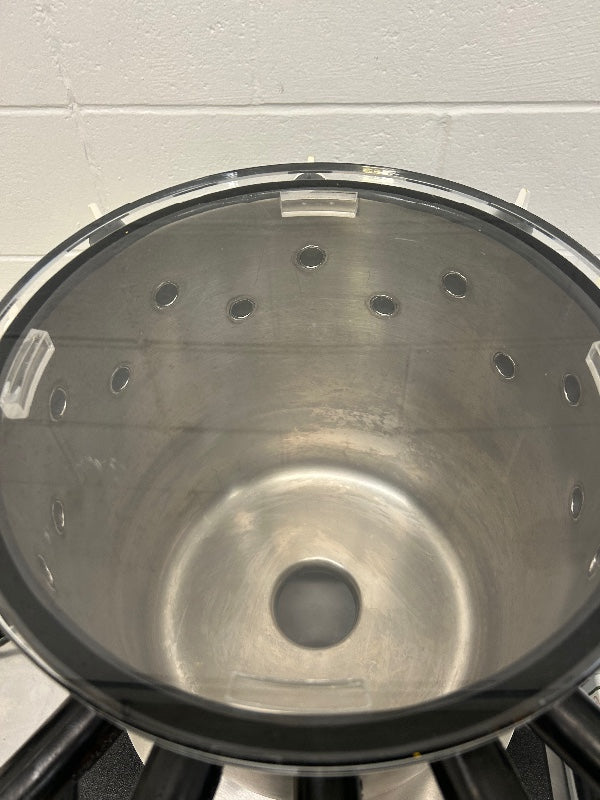

All sealing gaskets and O-rings were visually inspected and confirmed to be in proper working condition.

Date of Manufacture：

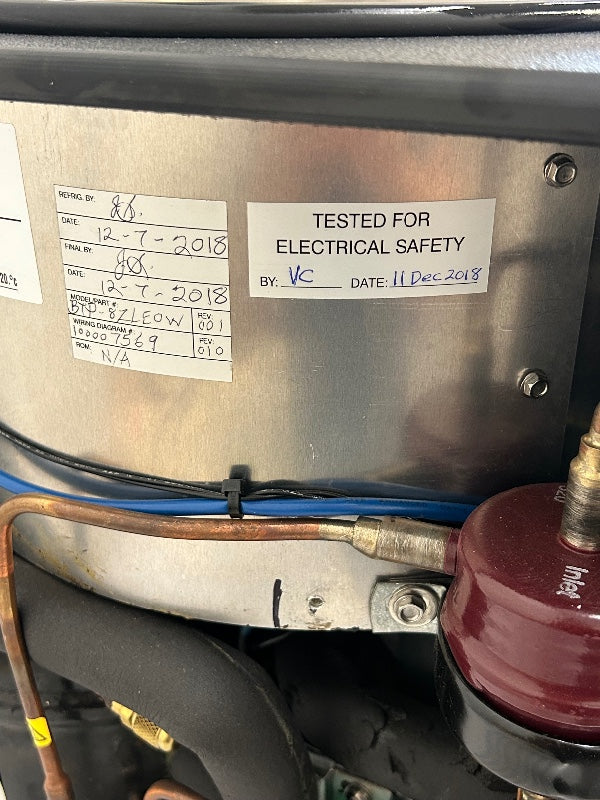

The nameplate does not list a manufacture date; based on inspection of the chamber, the estimated DOM is December 2018.

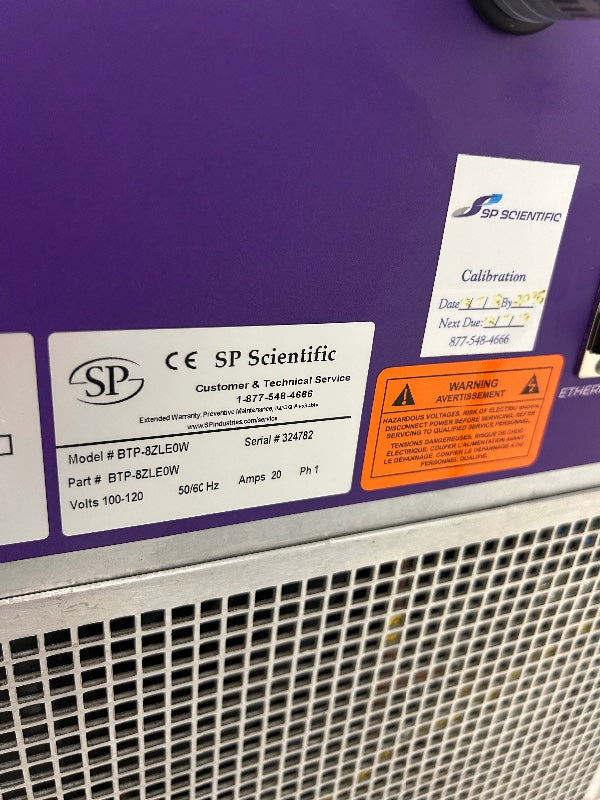

Electrical Specifications：

Rated voltage: 100–120V

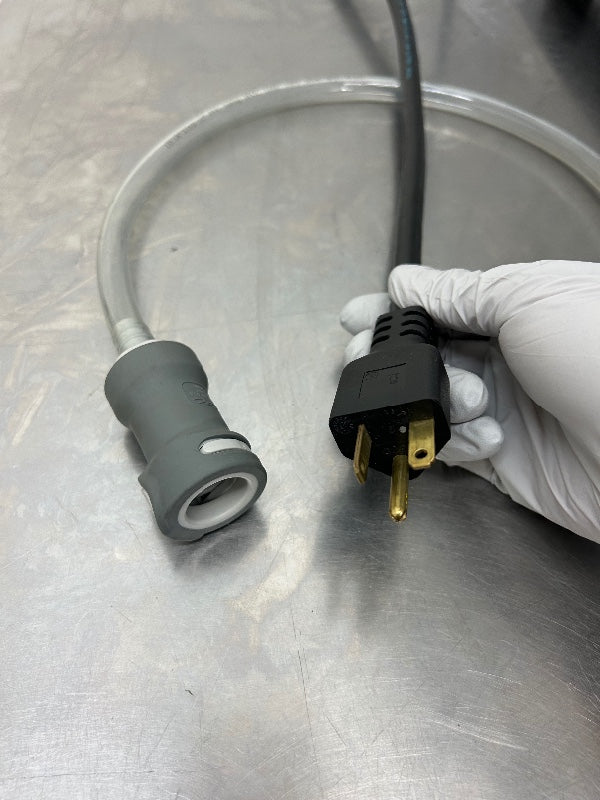

Plug type: NEMA 5-20P

Model Description:

The SP Scientific Benchtop Pro Freeze Dryer delivers reliable, high-performance lyophilization for research labs, pharmaceutical development, and biotech applications requiring precise sample preservation. Its -105°C condenser temperature ensures efficient moisture removal for sensitive biological, chemical, and pharmaceutical samples.

Highlights

• Ultra-low -105°C condenser temperature for demanding freeze-drying applications
• Compact benchtop design suited for lab environments with limited space
• Manufactured 2018, supporting consistent throughput for research and small-batch production
• Ideal for pharmaceuticals, biologics, vaccines, and other moisture-sensitive materials
