Savant

Savant Freeze Dryer Model Micromodulyo with pump

Name: Savant Freeze Dryer Model Micromodulyo with pump
Brand: Savant
SKU: GCLU00B1
Price: 1500.0 USD
Availability: InStock

$1,500.00 USD

Sale Sold out

Shipping calculated at checkout.

Product variants

Quantity

	Value Pre-owned
	30-Day Return

Manufacturer Part #: Micromodulyo
SKU #: GCLU00B1

The MicroModulyo is the ice condenser section of a freeze drying system. It is a low

cost unit suitable for freeze drying biological research materials and preparations in a

laboratory. The MicroModulyo requires only the attachment of a pump and a drying

accessory for samples to form a complete freeze drying system.

The MicroModulyo has a condenser chamber, a refrigeration system and a control sys-

tem with temperature indicator. The refrigerant used in the MicroModulyo is CFC-free.

All the MicroModulyo components are housed in a steel cabinet which is designed for

bench top use. The components are described in the following sections. (See Figure 1

for location of components.

When used with suitable accessories, the MicroModulyo can be used to freeze dry

materials in bulk trays, round bottomed flasks, tubes, vials or ampules. Alternatively,

the MicroModulyo can be used as a low temperature vapor trap (cold trap) that may be

attached to an existing evaporation facility.

Technical Notes

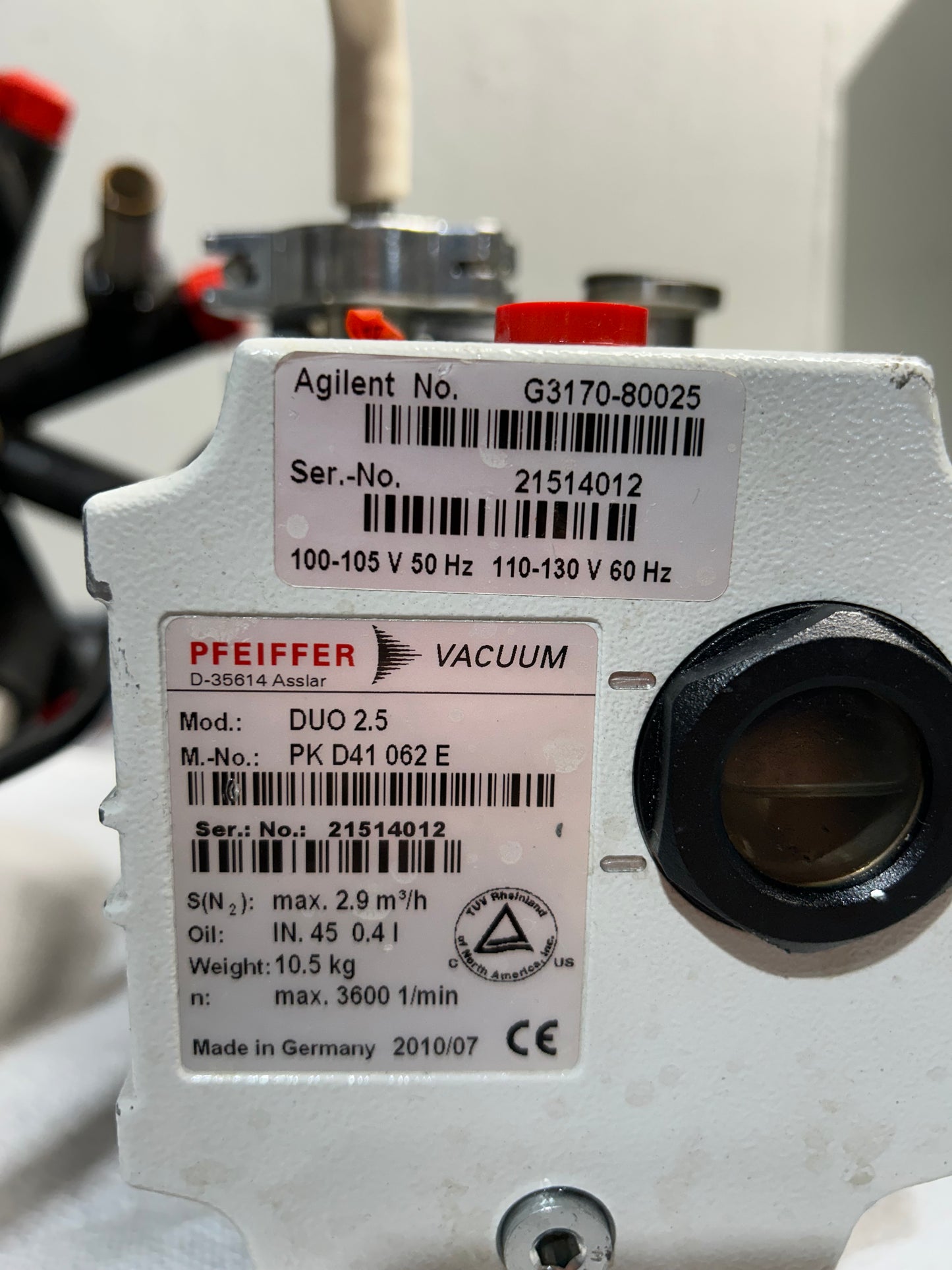

The unit was connected to a Pfeiffer Duo 2.5 rotary vacuum pump. The vacuum pump was tested with a micron gauge and achieved an ultimate vacuum of 1 micron. The vacuum level tested from one of the port was about 250 micron. 30 minutes after the unit was turned on, the condenser temperature was checked with an independent thermometer to around -45 °C. However, the green indication light never came on. We could ice covering the condenser coil. Also tested the drain valve and found to be working properly.

Defects

Slight dent on the condenser chamber housing. Minor stains and scuffs.

Included with the purchase
