Handheld Specimen Holder Polishing Metallurgy
Handheld Specimen Holder Polishing Metallurgy
Regular price
$85.00 USD
Regular price
Sale price
$85.00 USD
Unit price
per
Shipping calculated at checkout.
Couldn't load pickup availability
 |
Free Shipping |
 |
30-Day Return |
Quantity: 1

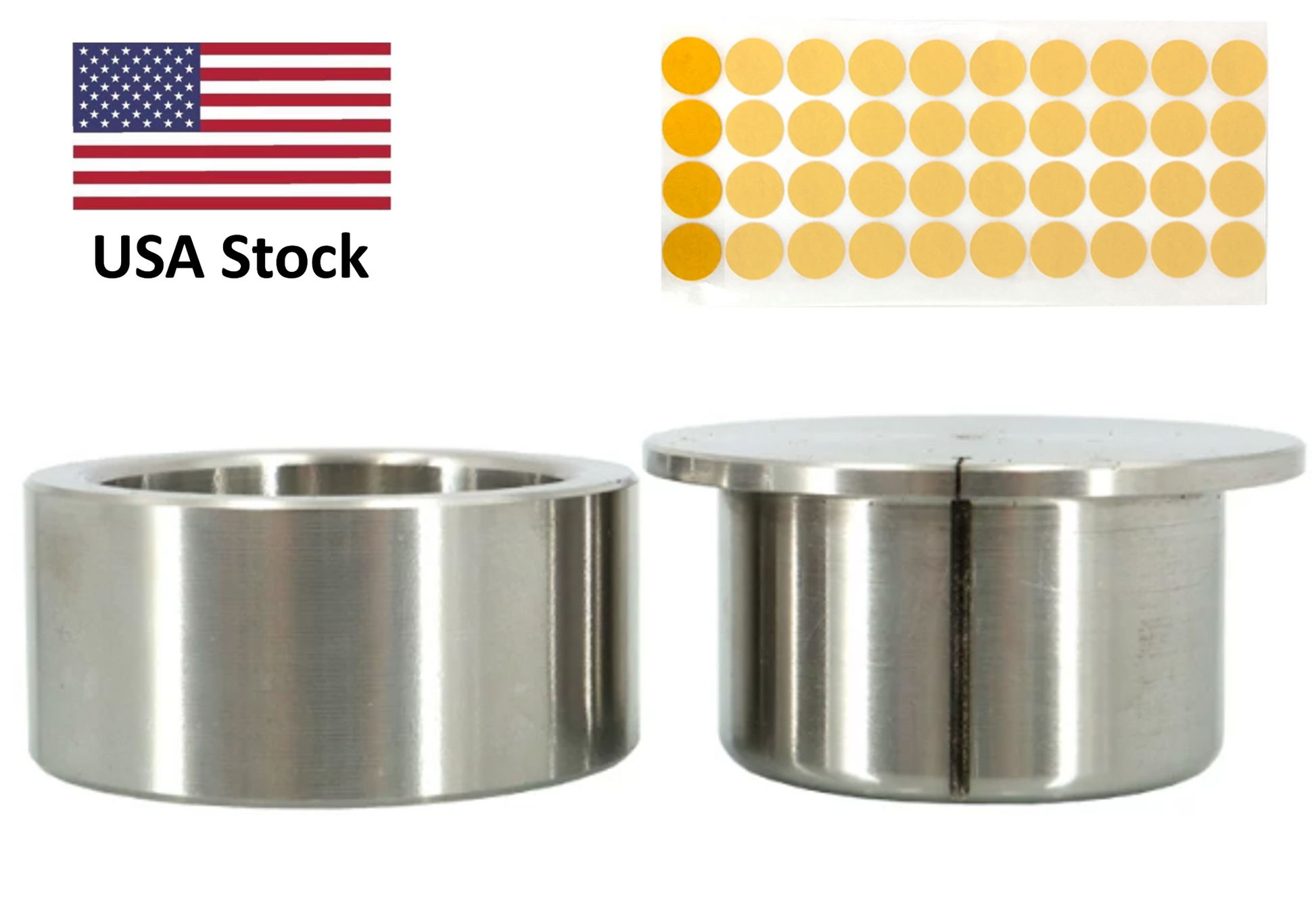

Include 40 pieces of double-sided tape (25mm in dia.)
This metallographic balanced polishing stand, equipped with a counterweight sleeve and a handheld auxiliary set, is primarily used for the pre-treatment of samples. Its purpose is to ensure the flatness of the sample surface during the grinding and polishing process.

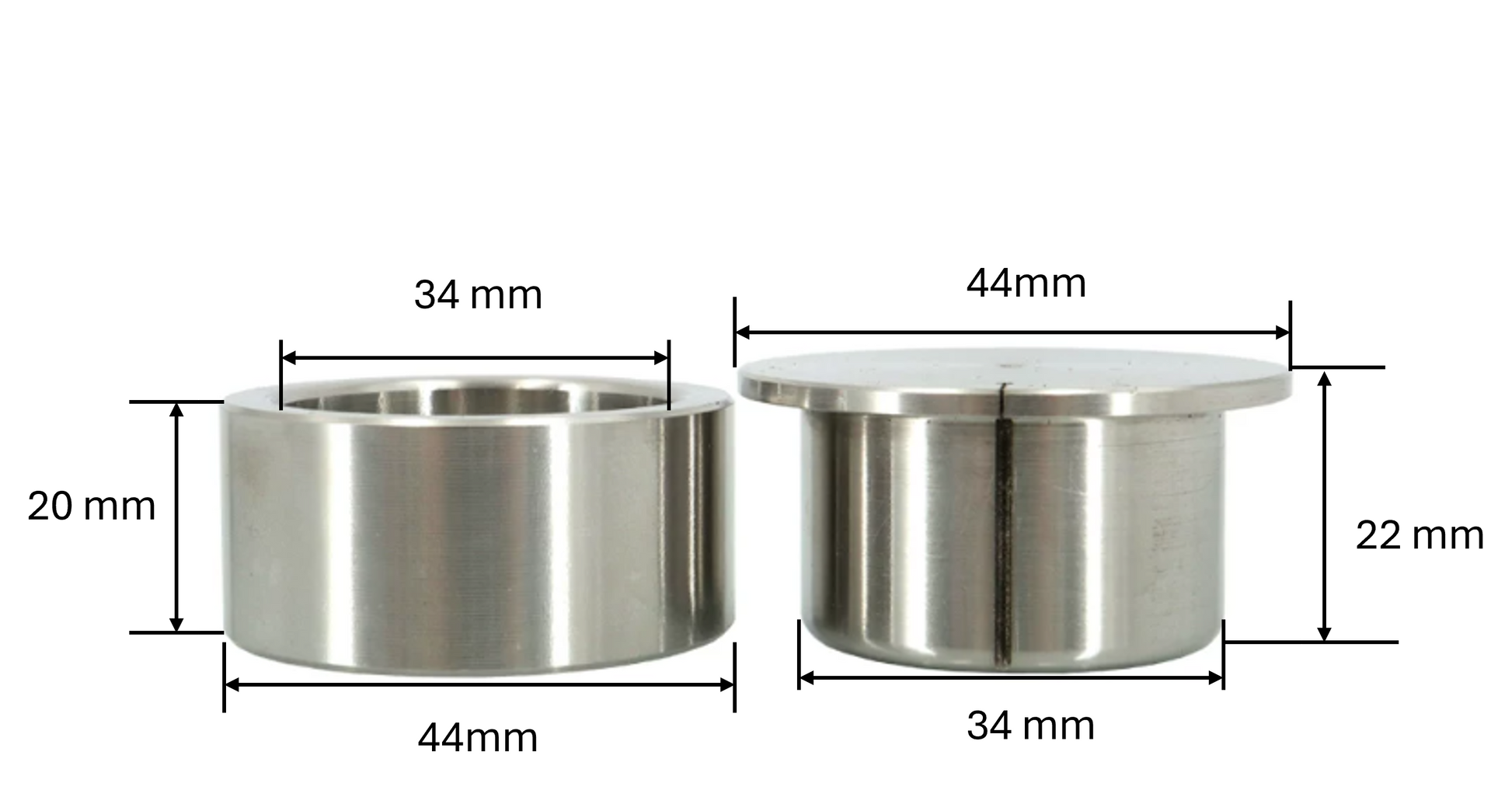

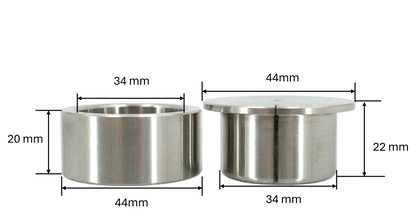

- Construction: It consists of an outer sleeve and a counterweight block.
- Material: Made from durable and wear-resistant stainless steel for ease of use.
- Design Feature: One end of the counterweight block has an added brim with a diameter matching the outer sleeve. This allows the user to easily lift the counterweight along with the sleeve during polishing to quickly observe the sample's progress.
Instructions for Use
-
Fixing the Sample: Secure the specimen to be polished under the counterweight pillar.
- Tip: For flat, sheet-like samples, double-sided tape can be used (or any other reliable method that suits your needs).
- Polishing: The sample is polished under the pressure of the counterweight's own weight. This ensures surface flatness without the need for external force.
- Operation: The outer sleeve should be allowed to drop naturally; hold the outer sleeve by hand to maintain balance.
- Observation: If you need to check the sample during the process, simply lift the outer sleeve together with the counterweight.
- Maintenance: After use, the device can be cleaned, wiped dry, and stored in a dry place.
