Edwards

Edwards XDS35i Dry Scroll Vacuum Pump

$3,600.00 USD

Sale Sold out

Shipping calculated at checkout.

Product variants

Quantity

	Premium Pre-owned
	60-Day Warranty
	30-Day Return

Model: XDS35i
SKU #: FCHU00A1

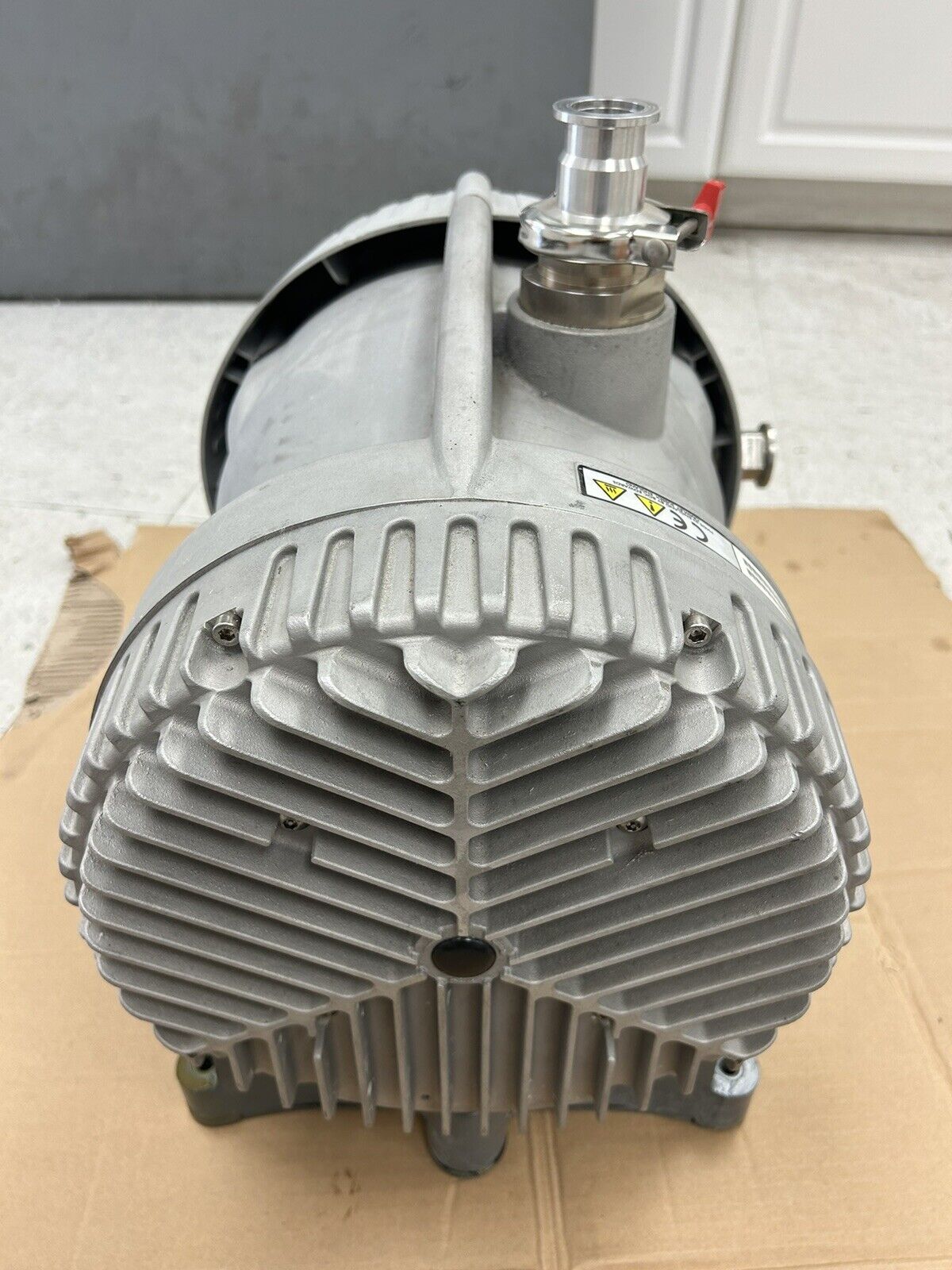

This Edwards XDS35i dry scroll roughing/backing pump has a pumping speed of 21.0 cfm (35.0 m³/hr), and an ultimate vacuum of 0.008 Torr (0.01 mbar). The pump has a KF-40 (NW40) inlet with inlet strainer, and a KF-25 (NW25) outlet port. It requires 100-240 VAC single phase power and has a C19 power connector. The XDS35i draws 10.6A@120 VAC (6.6A@240 VAC). The pump has a run/standby switch, a high/low voltage switch, an hour meter, and an onboard inverter which can be controlled remotely via its DB15 logic interface. This Edwards XDS35i dry scroll pump has part number A73001983.

The Edwards XDS35i scroll pump has a patented bearing shield designed to isolate the vacuum environment from all forms of lubricant. This feature ensures that the bearing remains totally dry, as well as protecting it from any process gases. The adjustable gas ballast allows vapor to be handled and opens up the range of applications to many that were previously unsuited to scroll pumps. This Edwards XDS35i pump is designed for pumping condensable vapors, and uses materials selected for compatibility in a wide range of laboratory applications.

Technical Notes

We tested the pump with a micron gauge, and a vacuum level of 0.01 mbar was achieved, which meets factory specifications. The voltage selector was set at 115V.

Since the pump is still pulling good vacuum, we did not attempt to change the tip seal.

We will not provide a power cord, since the buyer may choose a different voltage setting and the plug would be different.

Hours count: 14071

Defects

Minor scuffs and stains.

Included with the purchase
