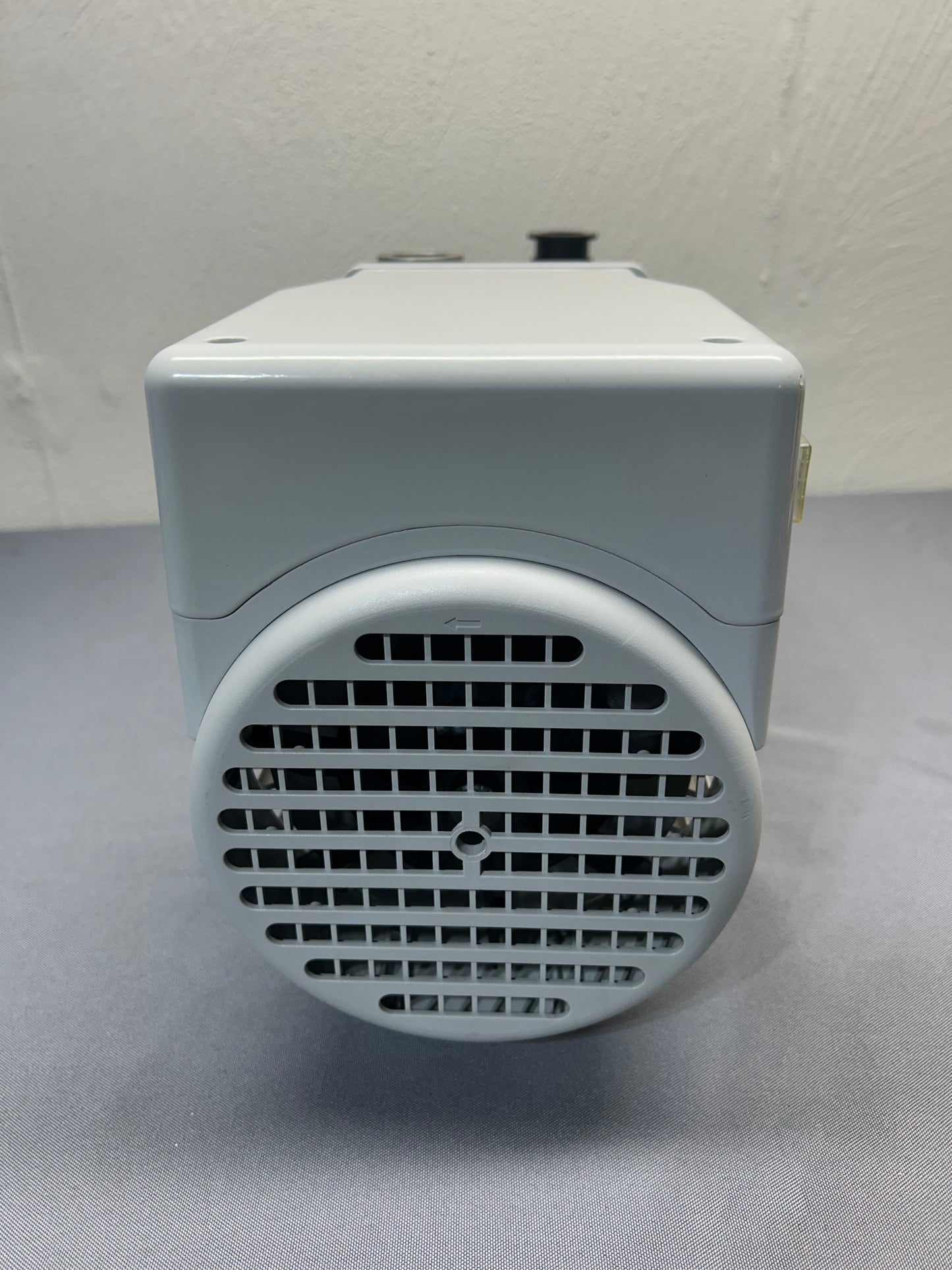

Edwards RV5 Rotary Vane Pump 3 Micron

The Edwards Vacuum RV 5 Rotary Vane Pump is a small oil sealed rotary vane pump that delivers excellent ultimate vacuum pressure, high pumping speeds and superior vapour handling capabilities with quiet operation. Edwards Vacuum RV Series, with over 300,000 units produced, these pumps offer proven performance that sets the industry standard for R&D and scientific pumping applications.

All Edwards RV pumps are significantly quieter – noise levels of 48 dBA 50Hz are typically half the noise of a conventional pump and have been achieved by extensive work on the drive train and motor.

The pumps have the unique ability to deliver excellent ultimate vacuum in both high vacuum and high throughput modes with or without gas ballast. This gives the user an unrivalled opportunity to select the optimum pumping performance without compromising the application.

In its high vacuum mode, the RV pump is ideal for analytical instruments, electron microscopes, physics research, backing turbo pumps and leak detection applications. Configure the same pump in the high throughput mode, and it becomes suitable for distillation, laboratory furnaces, backing vapor pumps, solvent concentration, freeze drying and other drying applications.

The simple to use mode selector and accessible, three-position gas ballast control allow the pump to be reconfigured at any time, even when the pump is running.

Edwards RV pumps have become the industry standard for scientific primary pumping applications. Edwards Vacuum RV series pumps are uniquely capable of delivering high or low throughputs with high ultimate vacuum. This, combined with ultra-low noise levels, makes them ideal for a wide range of applications including GCMS and other small bench top type applications.
