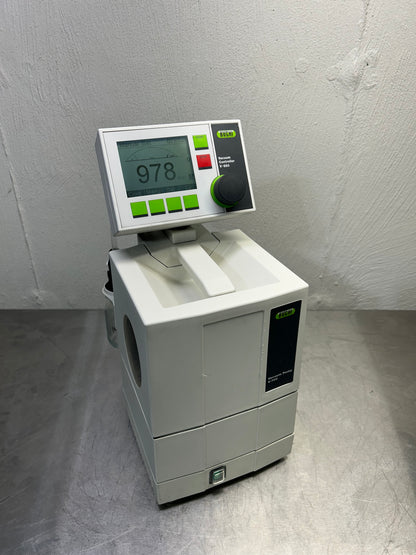

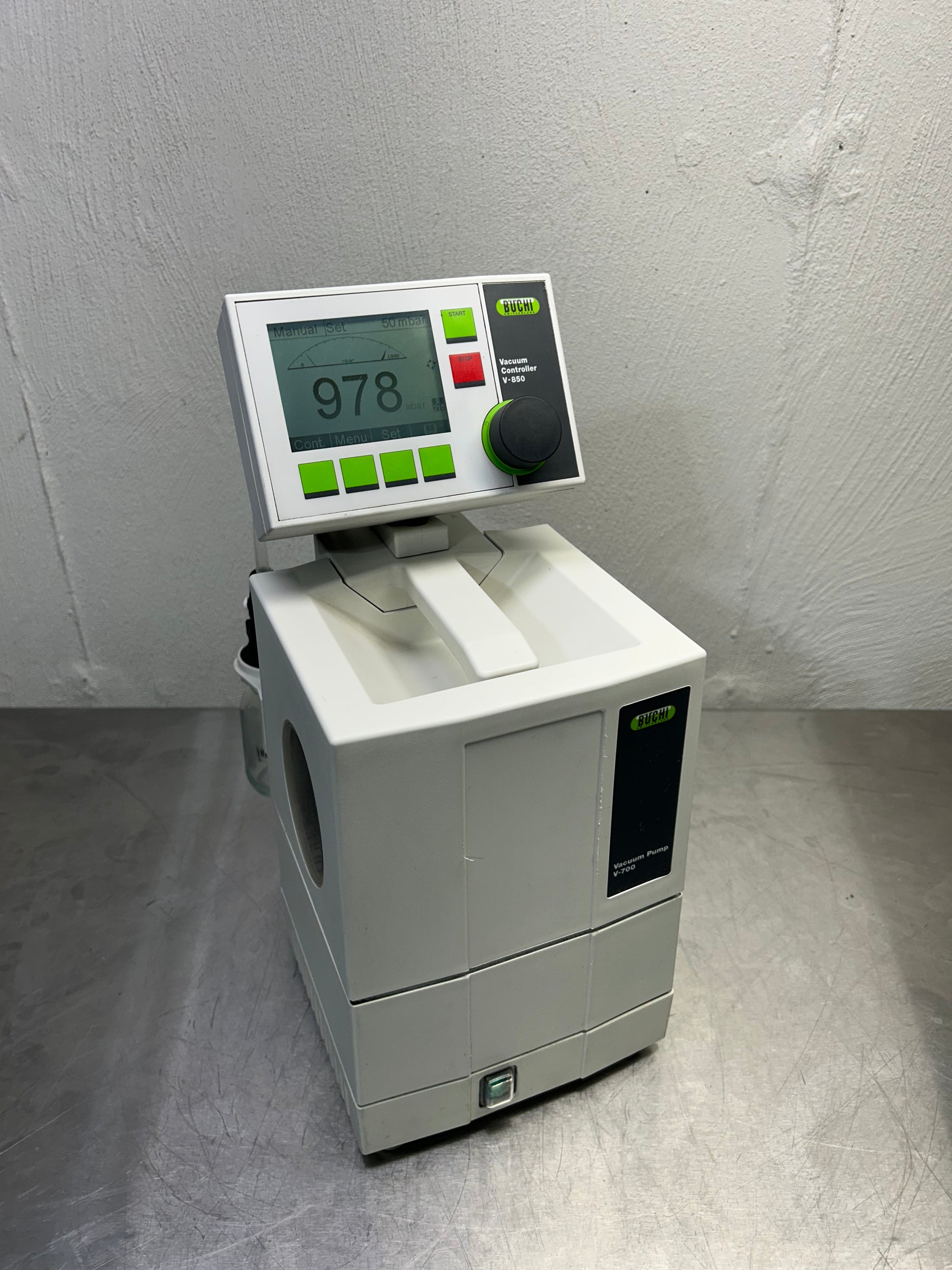

Buchi V-700 Diaphragm Pump with V-850 Vacuum Controller DOM 2014

Buchi V-700 Diaphragm Pump with V-850 Vacuum Controller DOM 2014

$1,800.00 USD
$1,800.00 USD
Sale Sold out
Shipping calculated at checkout.
Value Pre-owned
30-Day Return
Model: V-700/V-850
SKU #: FBLU02E1

A chemically resistant, dual-head PTFE diaphragm pump is a durable and reliable choice for a wide range of laboratory applications. With a flowrate of 1.8m3/hr and an ultimate vacuum of <10mbar, this pump is a powerful oil-free solution eliminating the need to dispose of used pump oil.

  • Compact, space-saving design
  • Extremely quiet operation
  • Oil-free - minimizes contamination risks
  • PEEK/glass pumpheads for chemical resistance

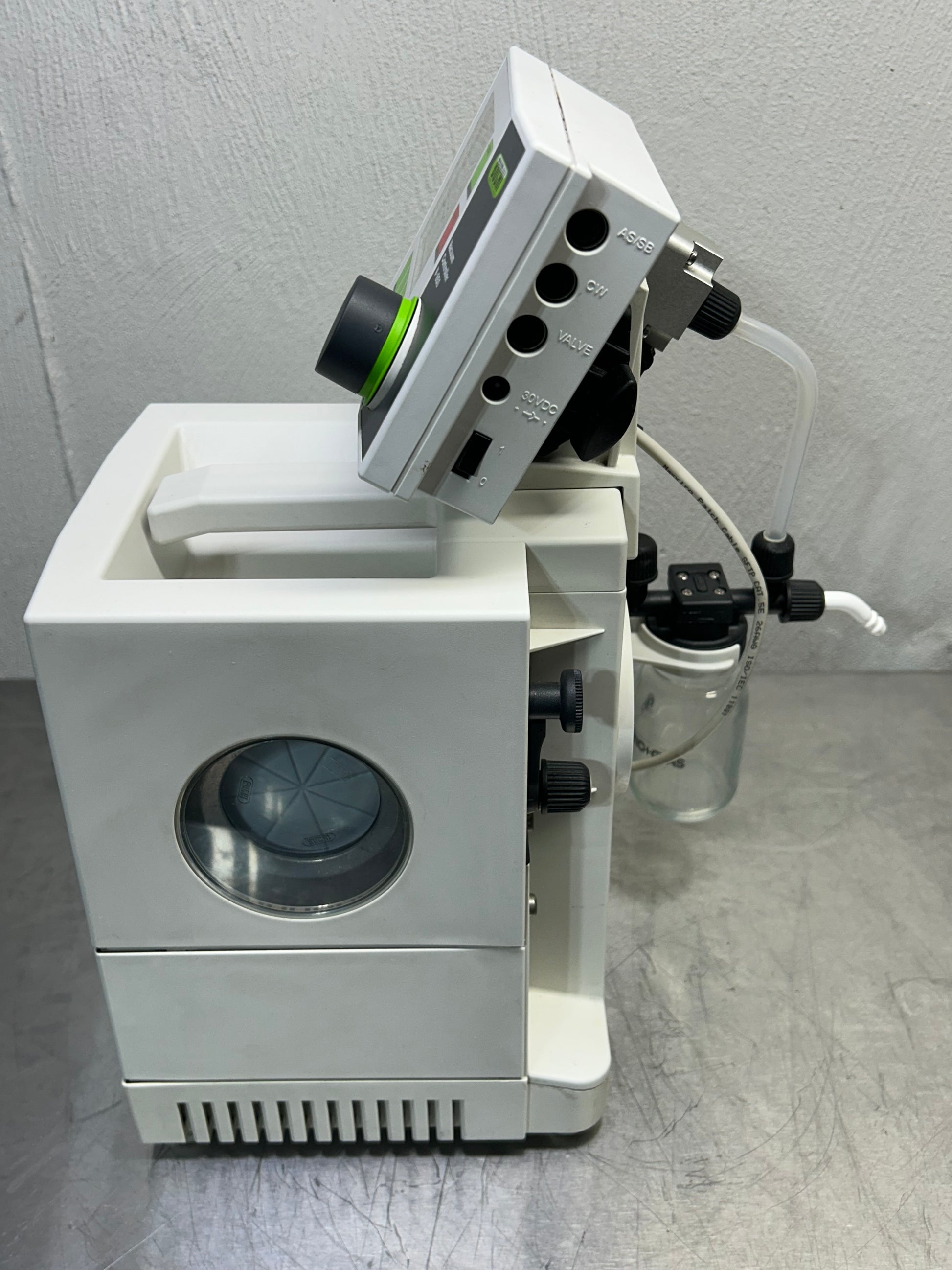

  • Windows to pumpheads for instant visual detection of contaminants
  • Service friendly - removable housing with built-in tools

Choice of Control Options Needle Valve Option —For Manual Operation

  • Low cost very basic regulation
  • Woulff Bottle recommended
  • No data interface

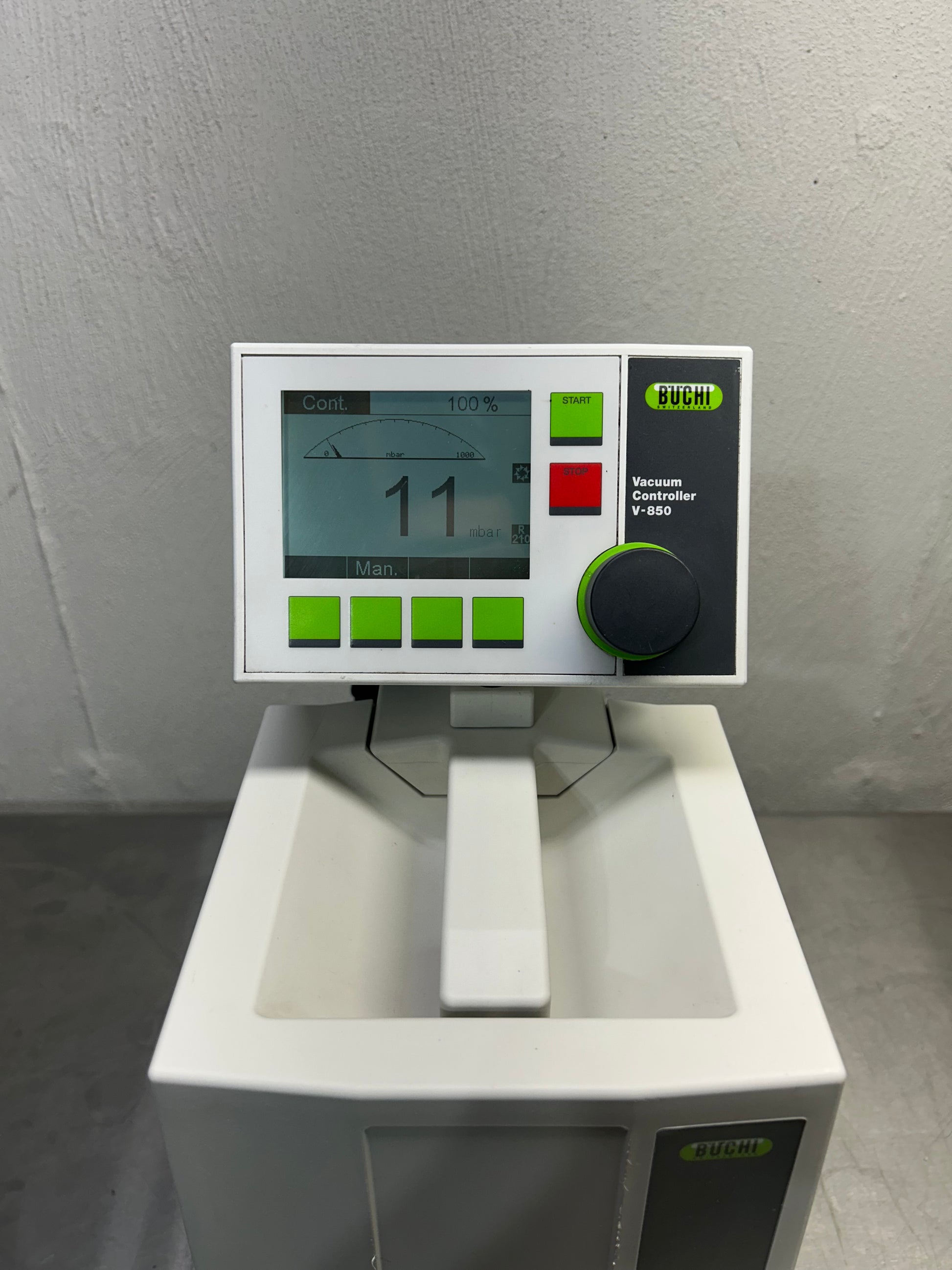

V-850 Professional Controller—For Standard Applications
  • Intuitive controls with timer
  • Control vacuum set pressure or speed
  • LabVac function - continuous operation with minimal energy requirements
  • Buchi Wizard - quick & easy menu setup
  • Solvent Library - 43 solvents pre programmed to simplify parameter selection

Technical Notes

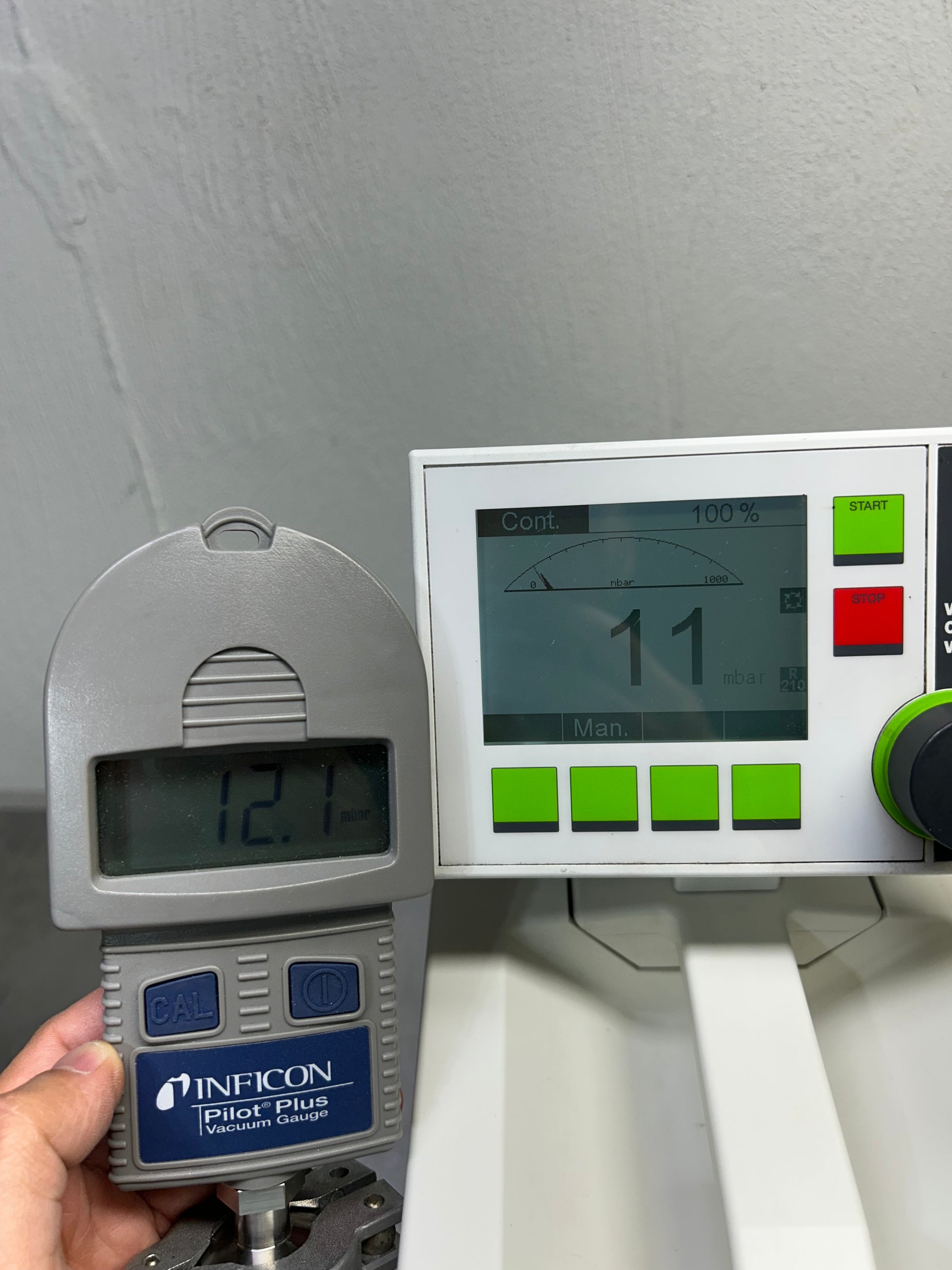

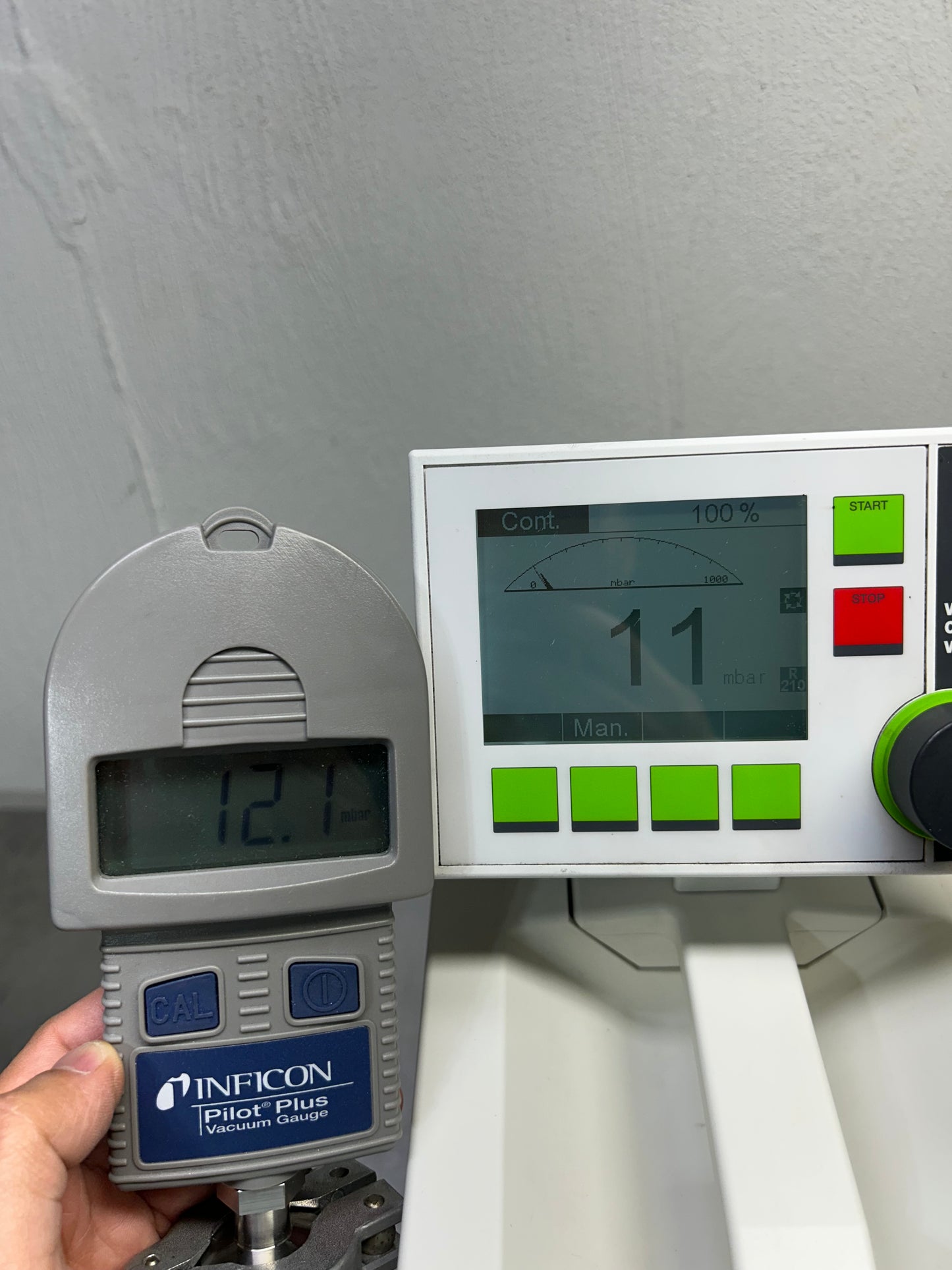

The ultimate vacuum of the system was tested with a micron gauge and found to be around 10 mbar. When pump is turned off, the vacuum level rises slowly. The accuracy of the V-850 vacuum gauge was checked with a reference gauge and found to be proper. The automatic control was tested and found to be working properly.

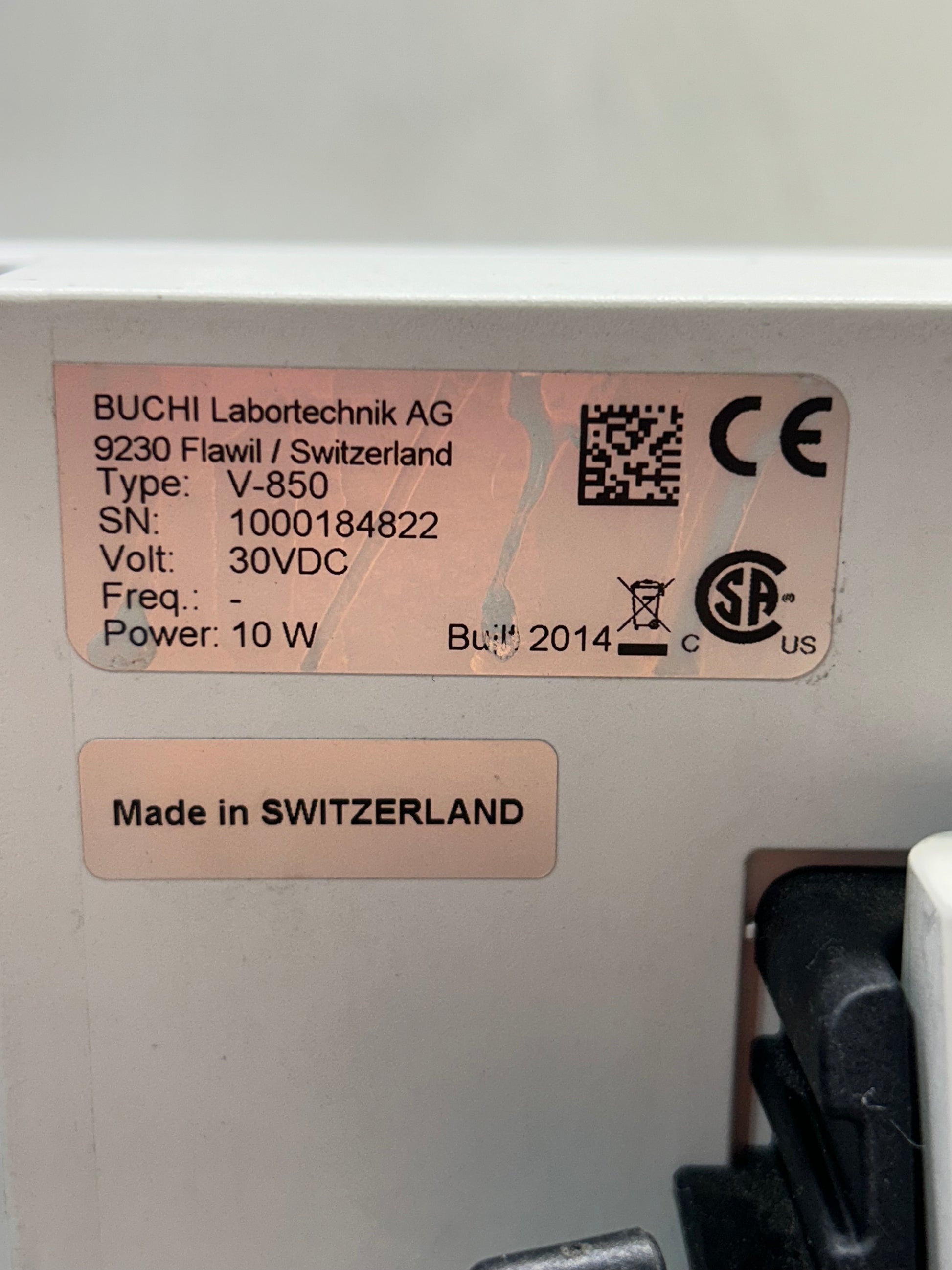

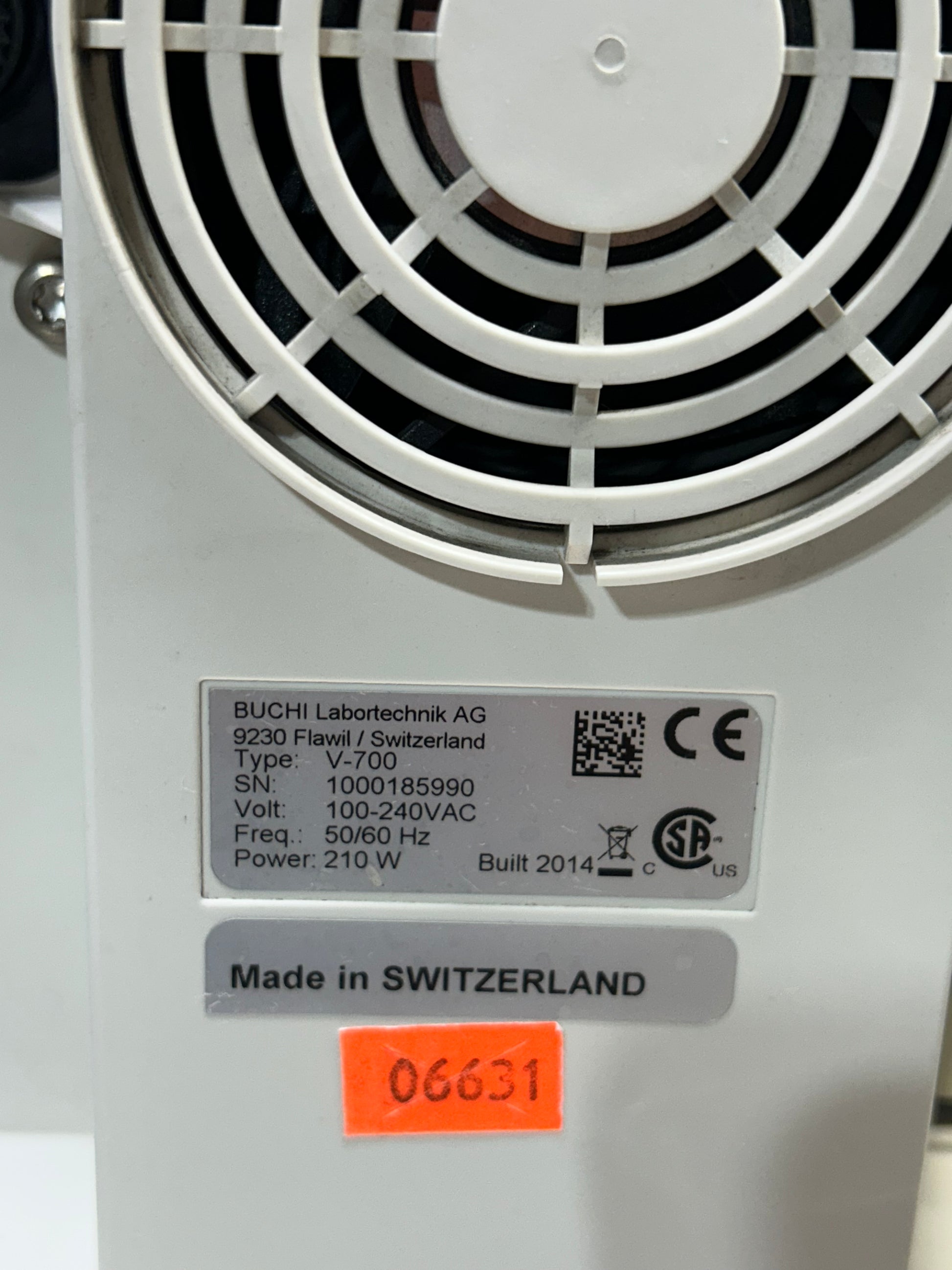

Year of Manufacture: 2014

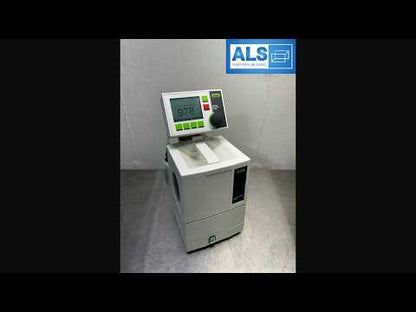

See video for the demonstration

Defects

The gas ballast valve at the closed position does not seem to as tight as it should. The ultimate vacuum of 10 mbar was achieved when the gas ballast valve was bypassed. When it is not bypassed, the ultimate vacuum when the gas ballast valve is closed is around 50 mbar.

Included with the purchase

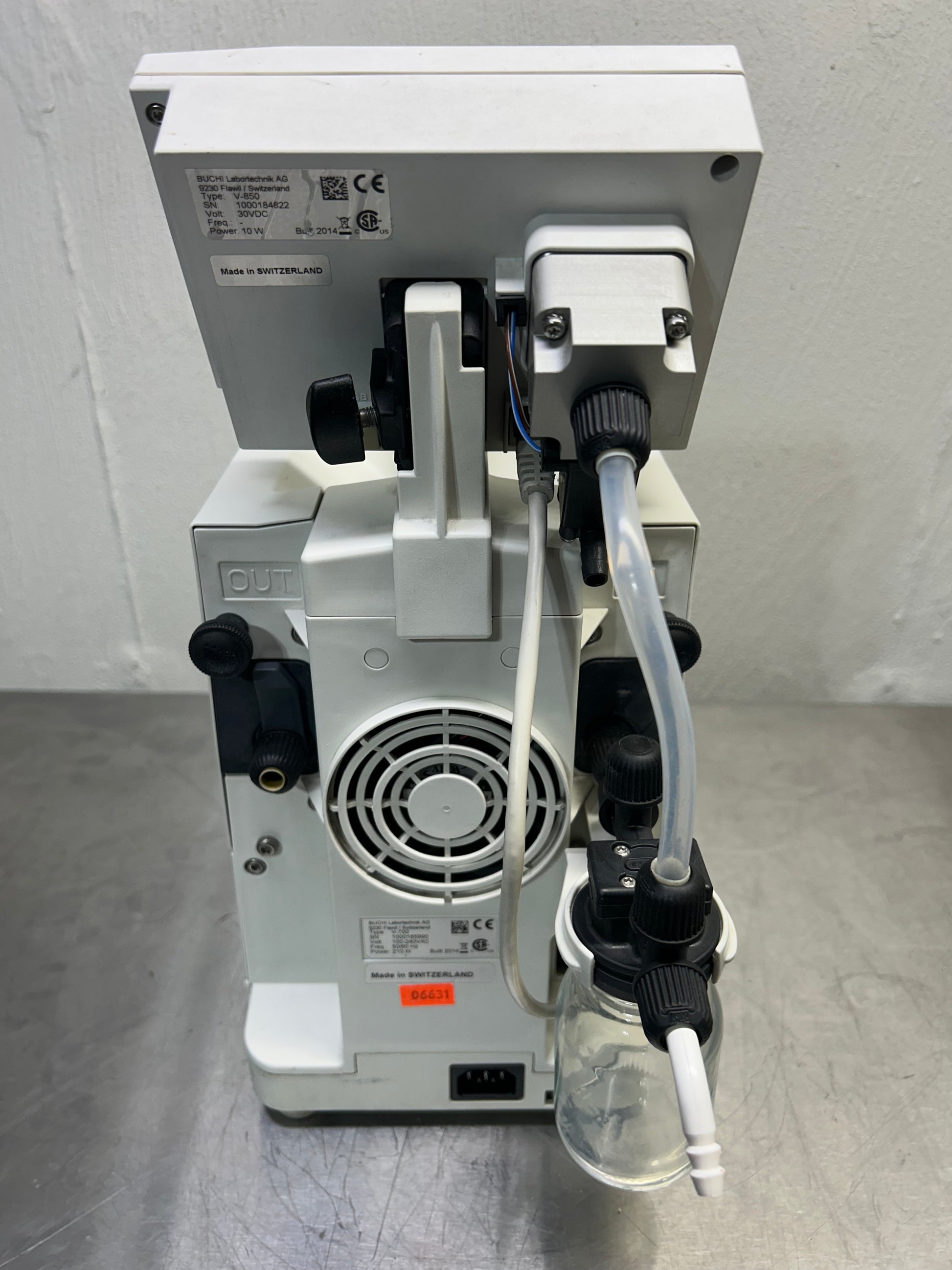

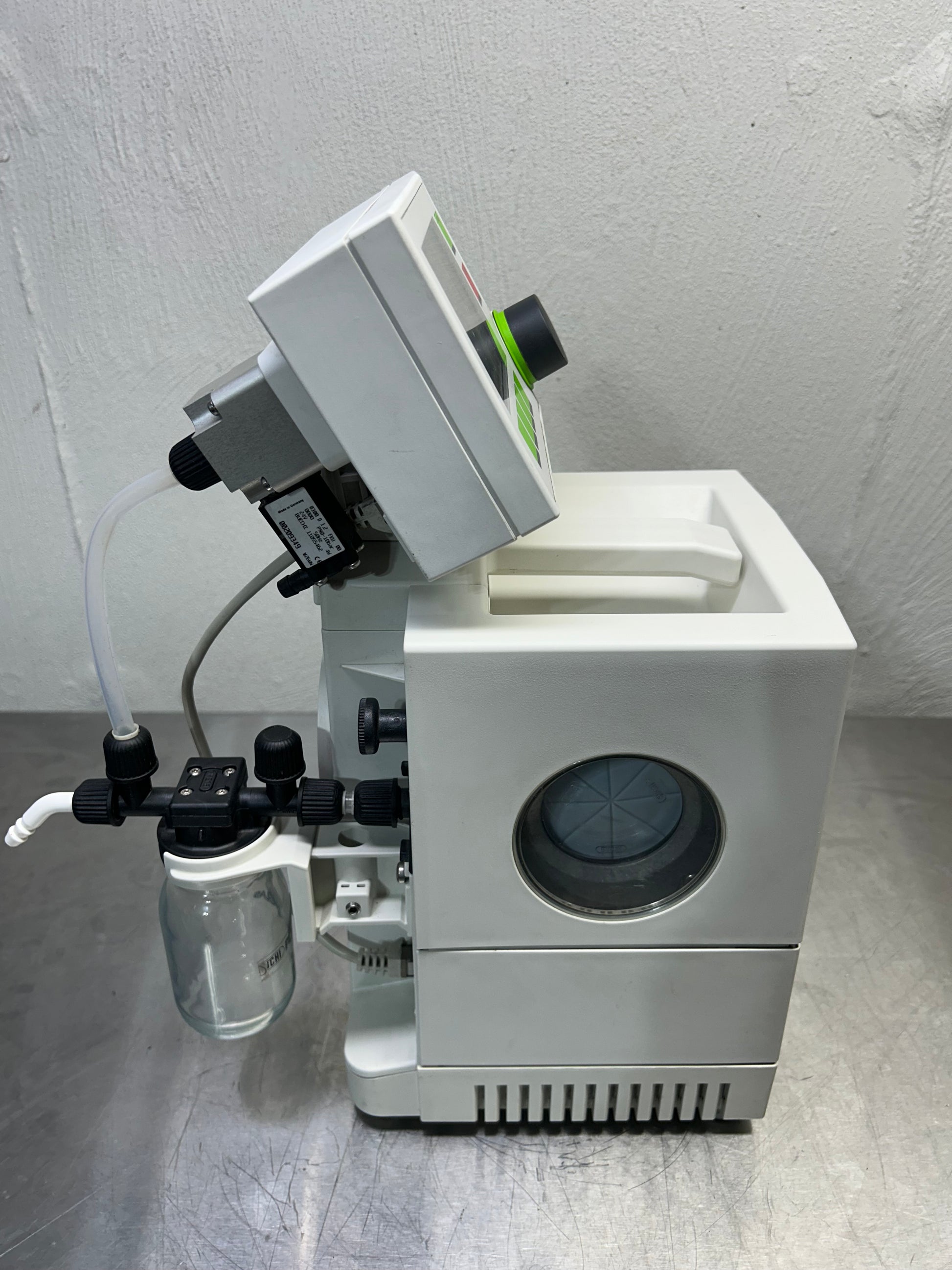

  • V-700 pump
  • V-850 Vacuum controller

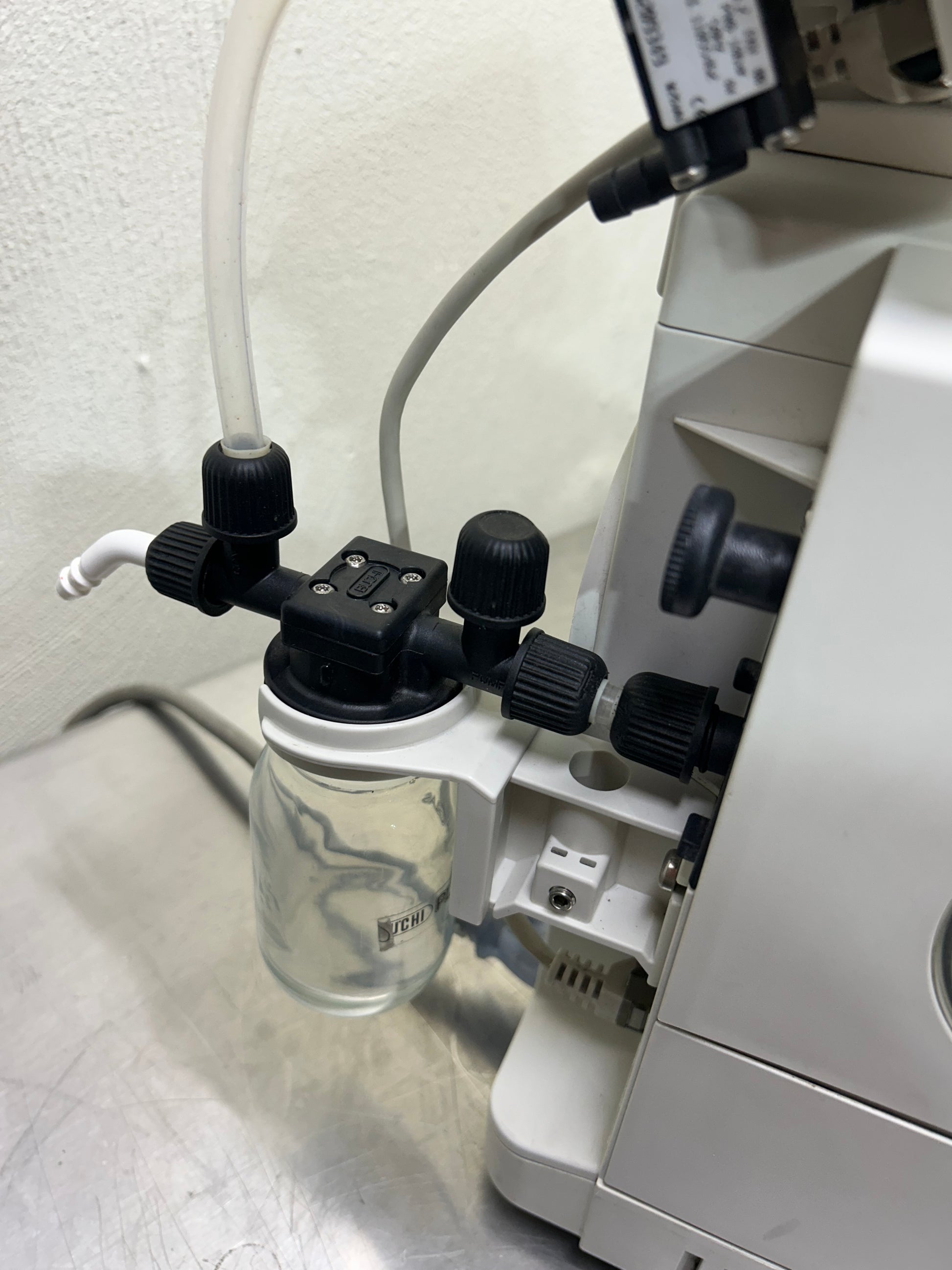

  • Buchi Plastic+Glas jar
  • 30-Day Return
