Buchi V-700 Diaphragm Pump with V-850 Vacuum Controller

Name: Buchi V-700 Diaphragm Pump with V-850 Vacuum Controller
Brand: BUCHI
SKU: FBLU00A2
Price: 1800.0 USD
Availability: OutOfStock

$1,800.00 USD

Sale Sold out

Shipping calculated at checkout.

Product variants

Quantity

	Premium Pre-owned
	60-Day Warranty
	30-Day Return

Model: V-700/V-850
SKU #: FBLU00A2

A chemically resistant, dual-head PTFE diaphragm pump is a durable and reliable choice for a wide range of laboratory applications. With a flowrate of 1.8m³/hr and an ultimate vacuum of <10mbar, this pump is a powerful oil-free solution eliminating the need to dispose of used pump oil.

Compact, space-saving design
Extremely quiet operation
Oil-free - minimizes contamination risks
PEEK/glass pumpheads for chemical resistance
Windows to pumpheads for instant visual detection of contaminants
Service friendly - removable housing with built-in tools

Choice of Control Options Needle Valve Option —For Manual Operation

Low cost very basic regulation
Woulff Bottle recommended
No data interface

V-850 Professional Controller—For Standard Applications

Intuitive controls with timer
Control vacuum set pressure or speed
LabVac function - continuous operation with minimal energy requirements
Buchi Wizard - quick & easy menu setup
Solvent Library - 43 solvents pre programmed to simplify parameter selection

Technical Notes

Calibration: the V-850 vacuum gauge was calibrated using the simple calibration method (6 pressure points: normal, 800 mbar, 600 mbar, 400 mbar, 200 mbar, 10 mbar) and an independent reference vacuum gauge. The accuracy was then checked with a reference gauge and found to be proper.

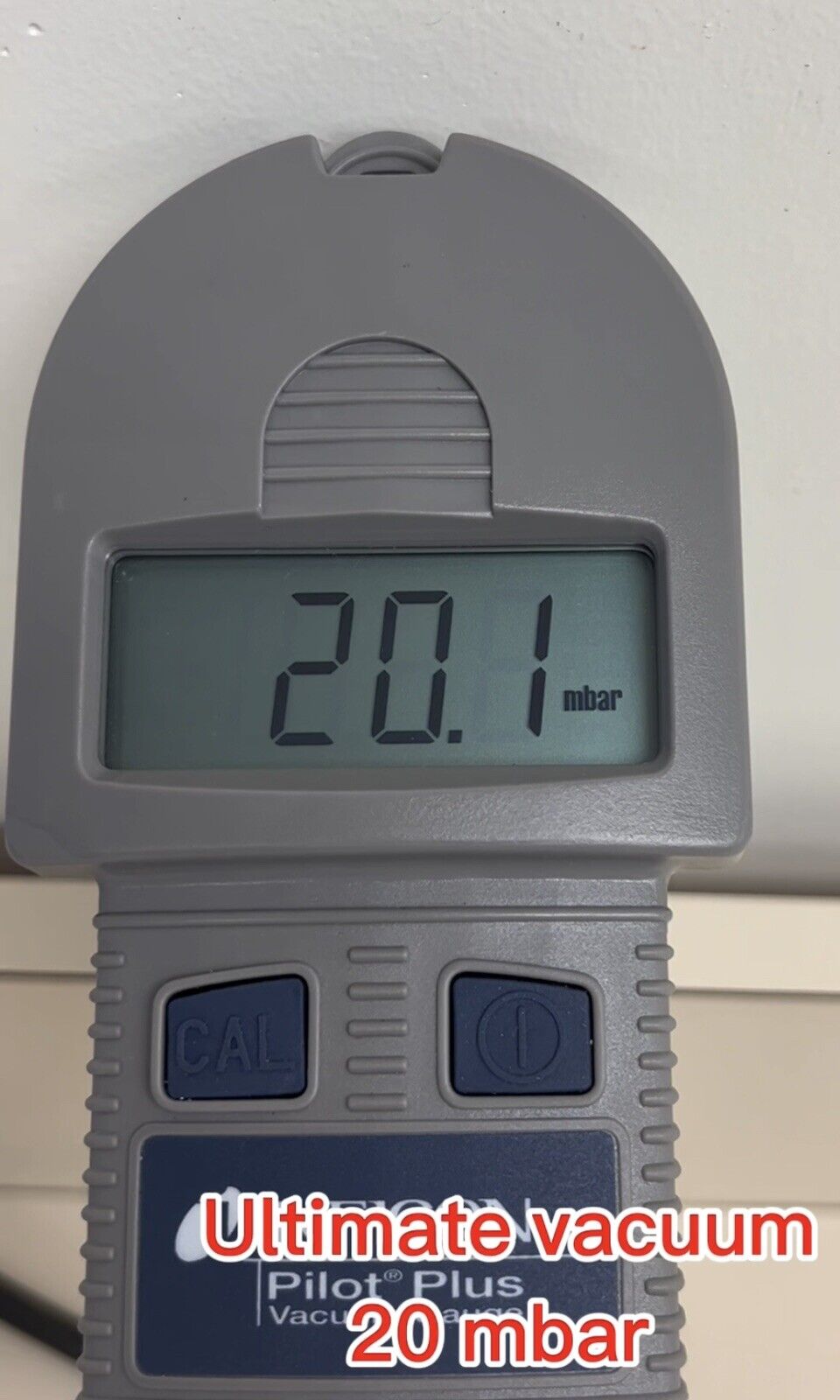

Testing: the ultimate vacuum of the system was tested with a micron gauge and found to be around 20 mbar. This is slightly lower than the ultimate vacuum of V-700 pump (<10 mbar), but we consider it proper for the whole vacuum system. When pump is turned off, the vacuum level rises slowly. The automatic control was tested and found to be working properly.
Year of Manufacture: 2011
See video for the demonstration

Defects

No defects observed

Included with the purchase
