Bionex Innovadyne Nanodrop Express 16 Channel with NS-2 Stage with Software

Name: Bionex Innovadyne Nanodrop Express 16 Channel with NS-2 Stage with Software
Brand: Bionex
SKU: HALU00A1
Price: 5400.0 USD
Availability: InStock

$5,400.00 USD

Sale Sold out

Shipping calculated at checkout.

Product variants

Quantity

	Premium Pre-owned
	60-Day Warranty
	30-Day Return

Model: Nanodrop Express/NS-2 stage
SKU #: HALU00A1

Nanodrop Express is a complete high-throughput solution for low-volume, high-precision pipetting. The system has interchangeable, fixed-tip heads and comes with two plate positions that enable applications such as assay miniaturization, DNA normalization, method development, PCR and NGS reaction setup, or protein crystallography. The patented technology isolates the solenoid dispense actuators from the sample path to assure long life and easy, low-cost maintenance – even with regular use of difficult suspensions such as proteins, cells and YOx beads.

Key Features and Benefits

Sample transfer and bulk reagent addition on the same platform
Aspirate and dispense with individual channel volume control
Micro solenoid valves for fast, precise low-volume applications and mixing
Exceptional dynamic range (nanoliter to milliliter)
Valve-free fluid path for outstanding reliability
FEP, SS, sapphire wetted parts compatible with commonly used solvents
96-, 384- and 1536-well plate formats, irregular and flat plate formats supported
Deep well and crystallography plates supported
Easy to program, easy to automate
Simple cleaning and maintenance

See the link for more details:

https://bionexsolutions.com/nanodrop-low-volume-pipettor/

Technical Notes

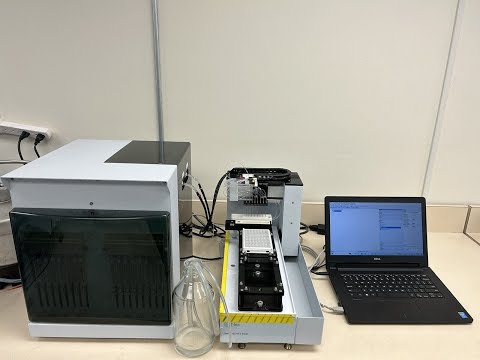

The unit was set up following the steps in the installation guide of the manual. which included all tube connections, electrical connections and installation of a licensed Nanobuilder software on a Dell laptop. Upon starting the unit, we could hear clicking and hissing sound coming from the digital pressure regulator bringing the system pressure to 12 psi. The software recognized the unit with no issue. Sparging was performed. Then procedures within the “installation prime” in Nanobuilder was performed, which included priming the path, back-flushing all 16 tips, tip installation and setting of height, tip and harness cleaning.

We then built a standard procedure in Nanobuilder for dispensing on a 96 welll plate. The steps are initialization, aspirate air gap, aspirate reagent, predispense, dispense on the fly, eject, wash and rinse. All steps were successfully performed. See the video.

We did not perform calibration, since the buyer is advised to perform your own calibration for your pipetting condition (reagent, pipetting volume, pressure, etc.), in order to achieve optimal pipetting precision.

We performed all steps in “prepare for shipping” in the Nanobuilder, except decontamination, since only distilled water and isopropyl alcohol were used. The procedure dried out all the fluid paths. Tips were removed and stored in a vial.

The unit came from a Fortune 500 company. Although no date of manufacture was displayed on the unit, judging from the label on the installation disc, we believe the unit was likely first deployed in 2016.

The buyer will need to supply your own helium tank and pressure reservoir. The pressure reservoir can be purchased from Alloy Product Corp for about $1000, depending on the reservoir size.

Please follow the instructions in the installation section of the manual strictly. Misuse by the user will void the warranty. We can provide help with installation remotely if needed.

Defects

No defects observed

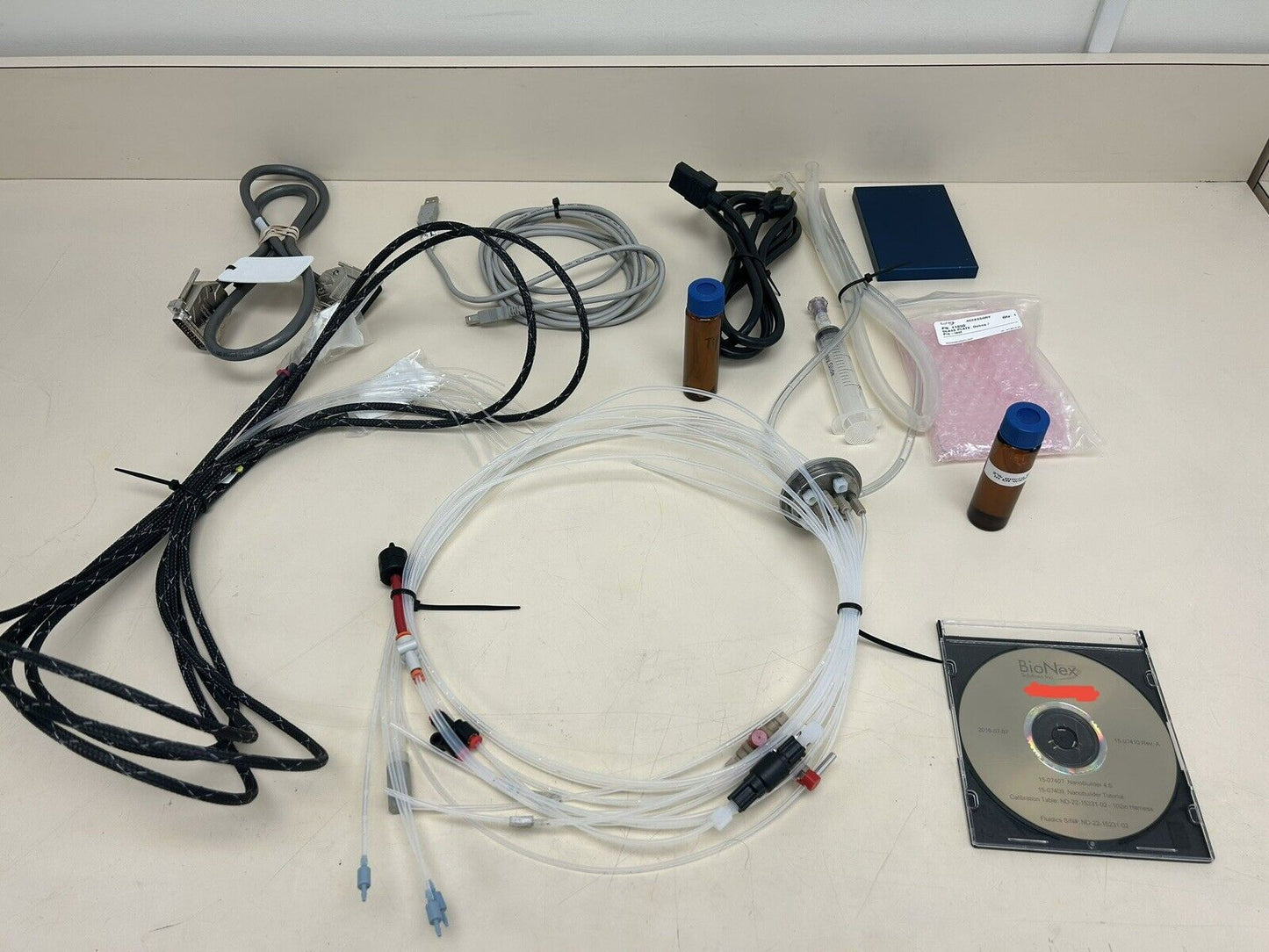

Included with the purchase

1) Nanodrop Express 16-Channel fluid module (low-pressure system, 1ml syringe drive)

2) 102-inch harness

3) NS-2 Stage (2x8)

4) 16 tips

5) Reservoir cap with all necessary fittings and tubes installed

6) 1/8 OD tube for connection to Helium tank, tubes to waste bottles

7) A Dell laptop (Windows 10) with Nanobuilder installed with AC adapter

8) Power cord, DB25 cable, USB-A to USB-B data cable,

9) Nanobuilder Installation disc

10) Micro 90 cleaning solution concentrate

11) Debugging glass plate

12) Syringe with a tip for back-flushing

13) 60-Day Warranty
